24v 36v 48v 250W/350W Electric Bike Controller Ebike LCD Display Thumb Throttle Type S886 Ebike Controller Electric Bike Scooter

Wattage > 400w

Motor Type Brush Non-gear Hub Motor

Design Brushless

Brand Name ANNOYBIKE

Voltage 24v36v48v

Voltage design 24v 36v 48v

Net size 87.1*73.3*59.7 mm

screen size 28*35mm

Application throttle+ LCD display+controller

Controller Power Lower than 500w

Model S886

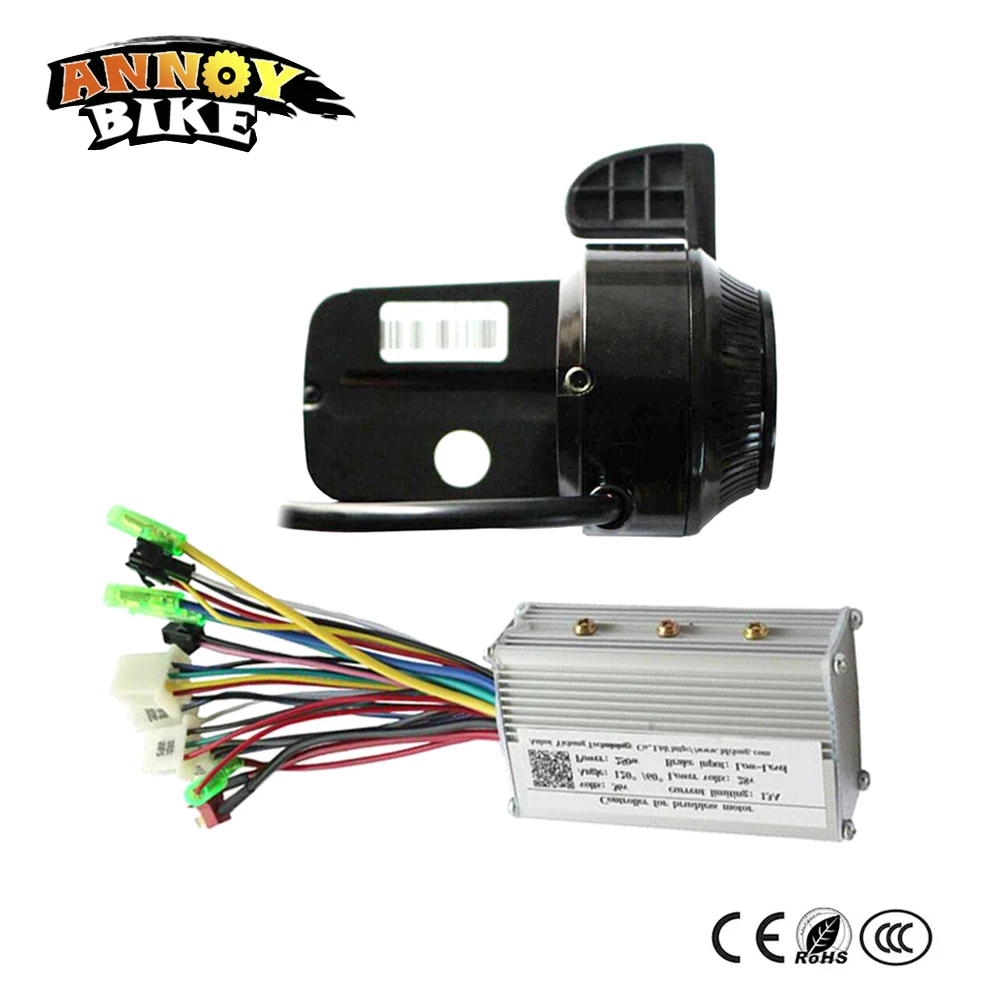

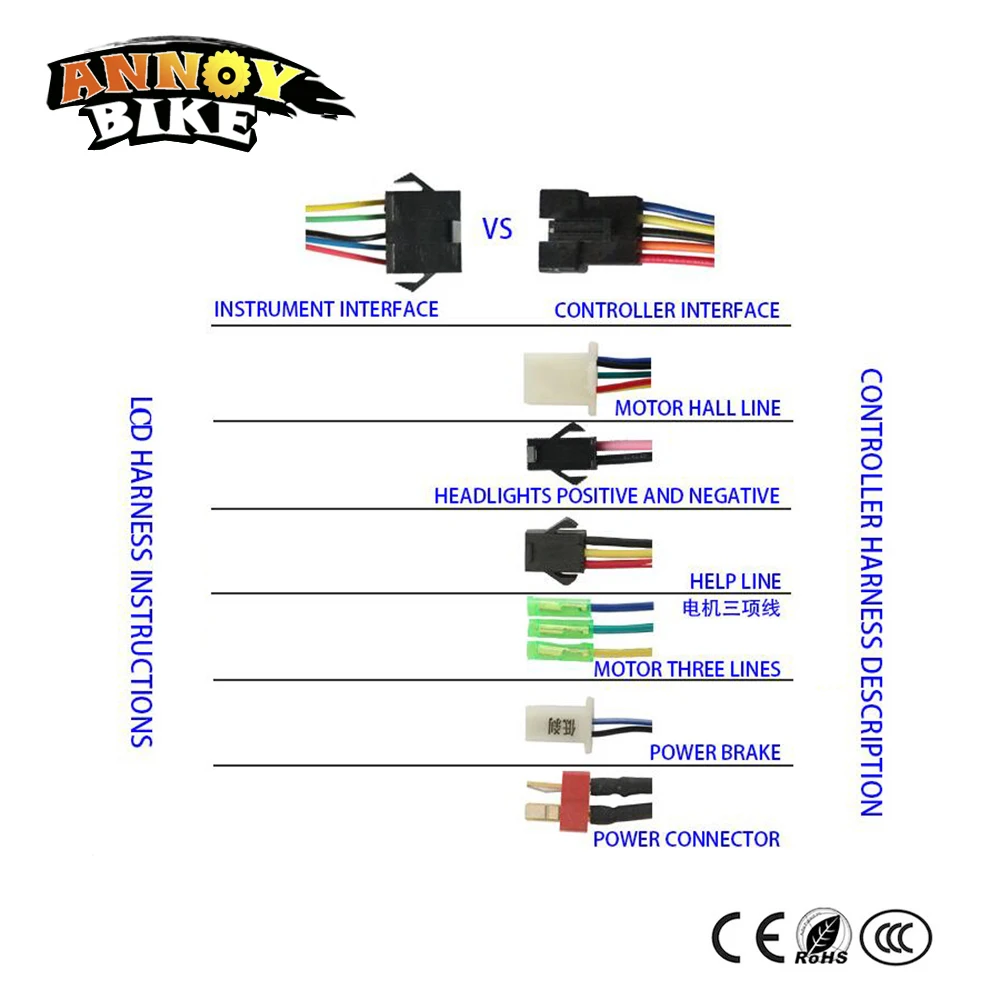

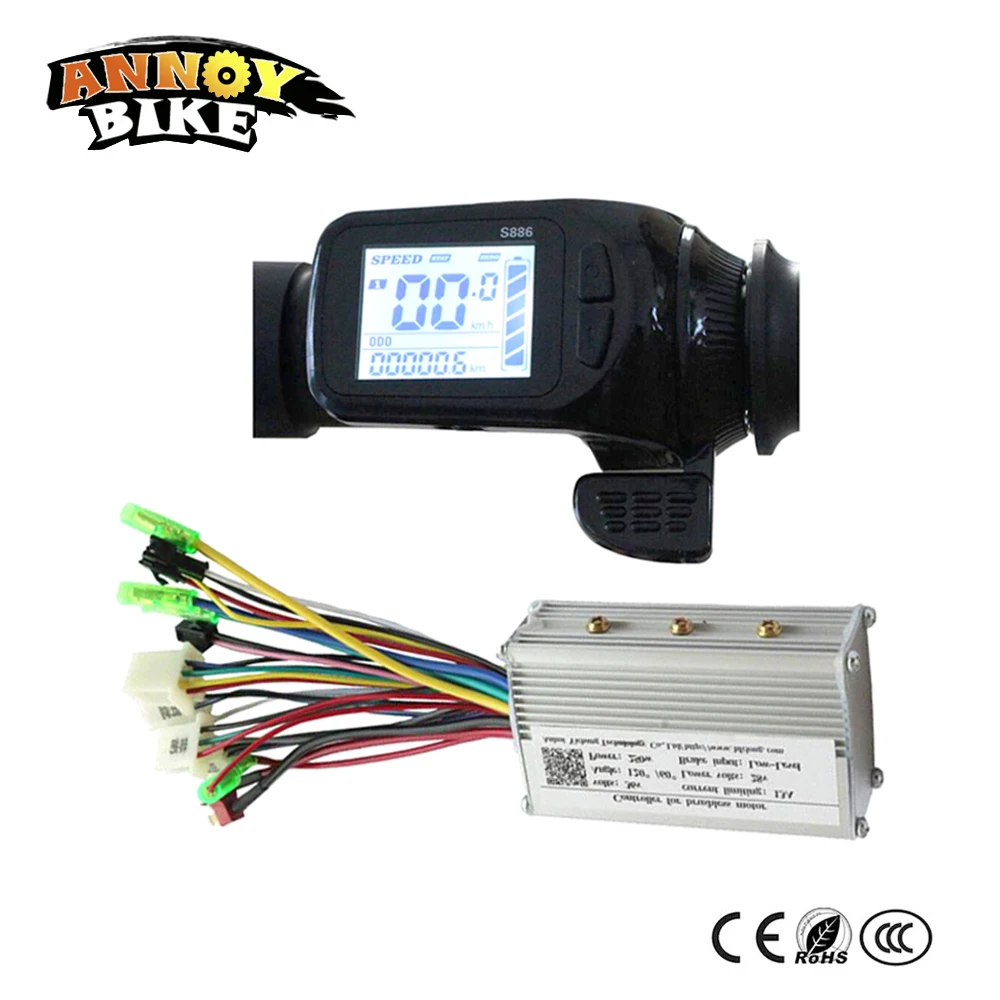

24v 36v 48v Electric Bike Assistant LCD Display Thumb Throttle Type LCD Display With Matched Controller What's included in the package? 1. Thumb throttle model LCD display （There is only right hand thumb throttle at this moment, no left design） 2. Matched controller Wiring meaning: Yellow: Power output Green: Signal receive Black: Power negative Blue: Signal transit Red: Power input Matched controller S886 Button introduction: Machine off/on button: short press switch the indication interface/setting interface; long press display on/off. Adjust button: short press will switch gears, date add or delete in setting interface. Machine off/on button + Adjust button: long press will in or exit setting. Under setting interface: Short press Machine off/on button: Switch setting inforface. On press Machine off/on button, switch Adjust button: Add or subtract setting date. P1 adjusts the screen brightness: P2 speed/hours unit P3 voltage regulation P4 sleep time P5 shift position P6 wheel size P7 tuning polepairs P8 set speed limit P9 adjusts the gear position when starting, 0 is soft start; 1 is hard start P10 pure ankle or pure electric, or 1:1 boost P11 setting The sensitivity of the boost, 1 is relatively sensitive, 24 is relatively slow P12 Set the power of the ankle, 1 is weak, 5 is strong P13 Set the number of magnetic poles for magnetic assistance P14 Set flow limit P15 set low voltage protection P16 setting mileage digital display ​
